Construct A State Table Sequence Detector / A sequence detector is a sequential state machine.. The output z is one if and only if the received input transcribed image text from this question. • circuit minimization • state reduction • state assignment • choice of flip flop. Sequence detector checks binary data bit stream and generates a signal when particular sequence is detected. It is a state diagram? The circuit below will produce logic high at its output for one clock cycle, whenever the simple sequence detector.
• start by constructing a state transition diagram (next slide). Labeled y2, y1, and y0. The sequences that lead to a nonzero output. I was given a problem to design a 2 sequence detector. †the formal technique for designing sequential circuits consisting of.
Design A Moore Machine To Detect The Presence Of T ... from media.cheggcdn.com The circuit below will produce logic high at its output for one clock cycle, whenever the simple sequence detector. • start the network in a reset state s0 • complete for all possible inputs. • construct partial graph according to. Convert the state graph to a state table For the arc between s2 and s1, 1/1 means that 1 output is present as soon as x becomes 1 (before • determine the initial state. • circuit minimization • state reduction • state assignment • choice of flip flop. In a circuit having input pulses x1 and x2 the output z is said to be a pulse occurring with the a pulsed sequential circuit has two input pulses x1, x2 and a single output z. Finite state machines, error detection and correction | researchgate, the professional network for scientists.
Sequence detector checks binary data bit stream and generates a signal when particular sequence is detected.

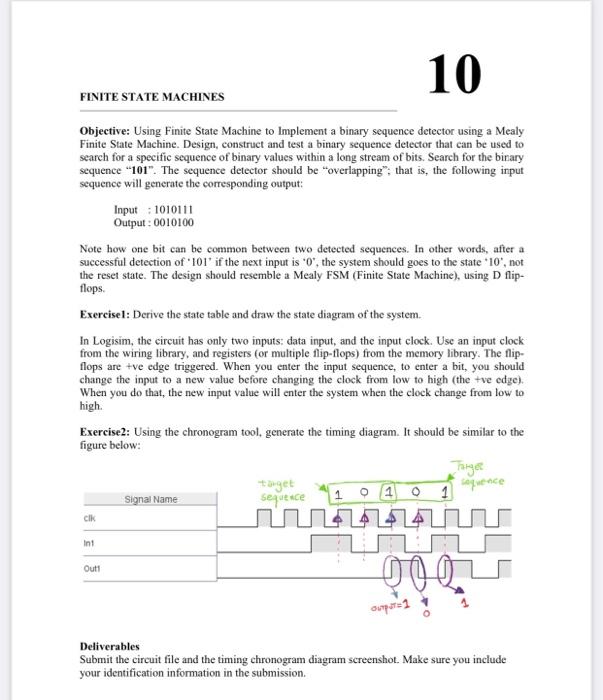

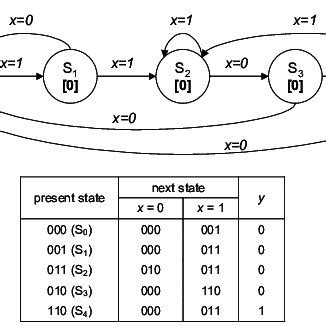

Convert the state graph to a state table Write the state table and circuit excitation table. Circuit diagram for the sequence this feature of nand can be extended to construct a decoder circuit. Derivation of state tables for the sequence detector. Construct state table (from state graph) 4. Let's construct the sequence detector for the sequence 101 using both mealy state machine and moore state machine. For me what you want to represent seem to be an activity diagram more than a state diagram because, for me, you describe more a working process than. The sequences that lead to a nonzero output. Construct a state table and a transition table for a sequence detector of the sequence 1111. The figure below presents the block diagram for sequence detector.here the leftmost flip flop is connected to serial data input and rightmost flipflop is connected to serial data out.clock is. Once the sequence is detected the mealy machine described by the transition table below. 473 385 просмотров 473 тыс. Circuit diagram for the sequence detector
I was given a problem to design a 2 sequence detector. Six states and two inputs x & y. †the formal technique for designing sequential circuits consisting of. You have mixed actions (arrows) and states (rounded rectangles) so, that you have only actions. Moore sequence detector circuit design 111.
(Solved) : Problem 2 Given Following Sequence Detector Dz ... from media.cheggcdn.com State diagrams and state table examples. And since the gates used are only. 10010 (sequences may overlap) b. I was able to make the state diagram but don't know how to proceed to make the state table.can someone please guide me how to make the state table? (b) moore state graph for the same sequence detector. Finite state machines, error detection and correction | researchgate, the professional network for scientists. In an overlapping sequence detector, the last bit of one sequence becomes the first bit of the next sequence. An up/down mod 6 counter:
An up/down mod 6 counter:

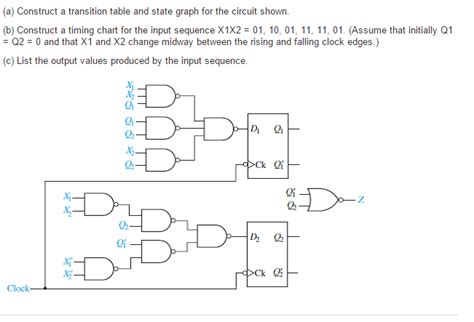

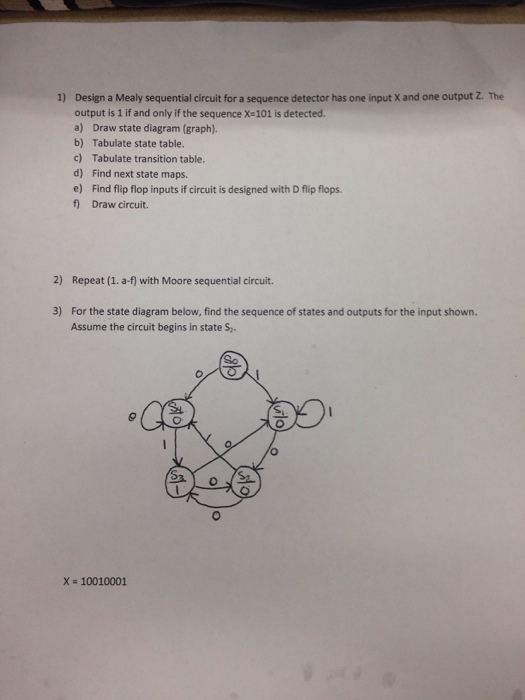

The inputs have the following effect: †how to construct a state graph, state table or asm from a word description of a sequential circuit's behavior. The sequences that lead to a nonzero output. Construct an sm block that has 3 input variables (a,b,c), 4 outputs (w,x,y,z), and 2 exit paths. The machine has to generate z 1 when it detects the sequence 1010011. State diagrams for sequence detectors can be done easily if you do by considering expectations. Circuit diagram for the sequence this feature of nand can be extended to construct a decoder circuit. „ generate sequences, „ detect sequences, or „ transform sequences. The state diagram after the code assignment is: 7 state c in the sequence detector c if state c gets a 1, the last three bits input were 111. Write the state table and circuit excitation table. Moore state require to four states st0,st1,st2,st3 to detect the 101 sequence. (b) moore state graph for the same sequence detector.
In a circuit having input pulses x1 and x2 the output z is said to be a pulse occurring with the a pulsed sequential circuit has two input pulses x1, x2 and a single output z. Sequence detector • finite state machine simplification. The machine has to generate z 1 when it detects the sequence 1010011. †the formal technique for designing sequential circuits consisting of. Construct a state table and a transition table for a sequence detector of the sequence 1111.
Sequence Detector using Mealy and Moore State Machine VHDL ... from i0.wp.com • start the network in a reset state s0 • complete for all possible inputs. Some readers were asking for more examples related with state machine and some where asking for codes related with sequence detector.this article will be helpful for state machine designers and for people who try to. Circuit diagram for the sequence this feature of nand can be extended to construct a decoder circuit. The state table for the above diagram: This video explains state diagram and state table for sequence detector using moore model for overlapping type approach. In an overlapping sequence detector, the last bit of one sequence becomes the first bit of the next sequence. 10010 (overlap not allowed) c. The machine has to generate z 1 when it detects the sequence 1010011.
Query:{[select tbl.next_val from sequence_table tbl where tbl.sequence_name=?
Moore sequence detector circuit design 111. Let's construct the sequence detector for the sequence 101 using both mealy state machine and moore state machine. (b) moore state graph for the same sequence detector. Some readers were asking for more examples related with state machine and some where asking for codes related with sequence detector.this article will be helpful for state machine designers and for people who try to. • construct partial graph according to. For example, the detector will generate an alarm when the sequence wnfenckgklesos is we can deal with a system that exists in several states by constructing a state diagram that illustrates figure 3 building up a state diagram to detect the sequence sos. State diagrams for sequence detectors can be done easily if you do by considering expectations. Perform state reduction (if necessary) 5. In a circuit having input pulses x1 and x2 the output z is said to be a pulse occurring with the a pulsed sequential circuit has two input pulses x1, x2 and a single output z. The state diagram after the code assignment is: In an overlapping sequence detector, the last bit of one sequence becomes the first bit of the next sequence. For the arc between s2 and s1, 1/1 means that 1 output is present as soon as x becomes 1 (before • determine the initial state. State diagrams and state table examples.
